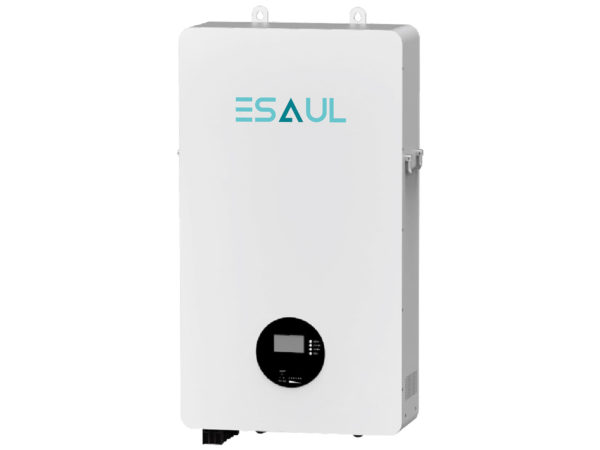

10KWh 51.2V 200Ah Wall Mounted LiFePO4 Lithium Battery

  • Multiple operating modes,on-grid, off-grid, and UPS. MPPT control.
  • Compatible with almost all 24V/48V LiFePO4 battery pack.
  • Integrated smart APP, can remotely diagnose and update.
  • One key to reactive the LiFePO4 battery pack/pre-charge the input stage.
  • Frequency droop control, Max.16pcs parallel. DC coupled and AC coupled to retrofit existing solar system.

Model No.EWB-10KW
Rated Voltage (V)51.2
Rated Capacity(Ah)200
Rated Energy(Wh)10240
Voltage Range(V)44.8-56
Charge Voltage Range(V)55.2-56
Cut-o ffVoltage (V)44.8
Recommend Charge Current(A)100
Max Charge Current(A)200
Max Discharge Current(A)200
Dimension: LW*H(m)457*163*760
Weight(kg)70
Communication PortRS485、CAN
DisplayLED+LCD
TerminalPlugin
Compatible inverterGrowatt, Goodwe, Sol-Ark, SRNE DEYE
Humidity (%)5-95% RH
Charge Temperature Range(°C)0-45
Discharge Temperature Range(°C)-20-60
Storage Temperature Range(°C)-20-45
Cycle Life>6000(0.5c@25C,80%DOD)
Safety & CertificationCE,EMC,TUV(IEC62619),UL1973
TransportationUN38.3
