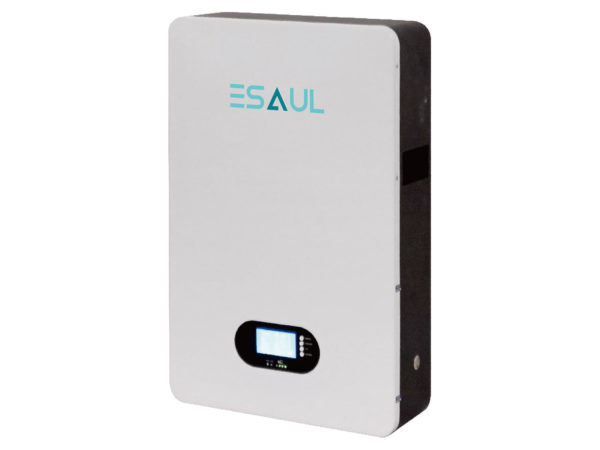

5KWh 51.2V 100Ah Powerwall Wall Mounted Solar Battery
- Multiple operating modes,on-grid, off-grid, and UPS. MPPT control.
- Compatible with almost all 24V/48V LiFePO4 battery pack.
- Integrated smart APP, can remotely diagnose and update.
- One key to reactive the LiFePO4 battery pack/pre-charge the input stage.
- Frequency droop control, Max.16pcs parallel. DC coupled and AC coupled to retrofit existing solar system.
| Model No. | EWB-5000W |
|---|---|
| Rated Voltage (V) | 51.2 |
| Rated Capacity(Ah) | 100 |
| Rated Energy(Wh) | 5120 |
| Voltage Range(V) | 44.8-56 |
| Charge Voltage Range(V) | 55.2-56 |
| Cut-off Voltage (V) | 44.8 |
| Recommend Charge Current(A) | 50 |
| Max Charge Current(A) | 100 |
| Max Discharge Current(A) | 100 |
| Dimension: LW*H(m) | 420*160*580 |
| Weight(kg) | 51 |
| Communication Port | RS485, CAN |
| Display | LED+LCD |
| Terminal | Plug-in |
| Compatible inverter | Growatt, Goodwe, Sol-Ark, SRNE DEYE |
| Humidity (%) | 5-95% RH |
| Charge Temperature Range(°C) | 0-45 |
| Discharge Temperature Range(°C) | -20-60 |
| Storage Temperature Range(°C) | -20-45 |
| Cycle Life | >6000(0.5c@25C,80%DOD) |
| Safety & Certification | CE, EMC, TUV(IEC62619), UL1973 |
| Transportation | UN38.3 |
