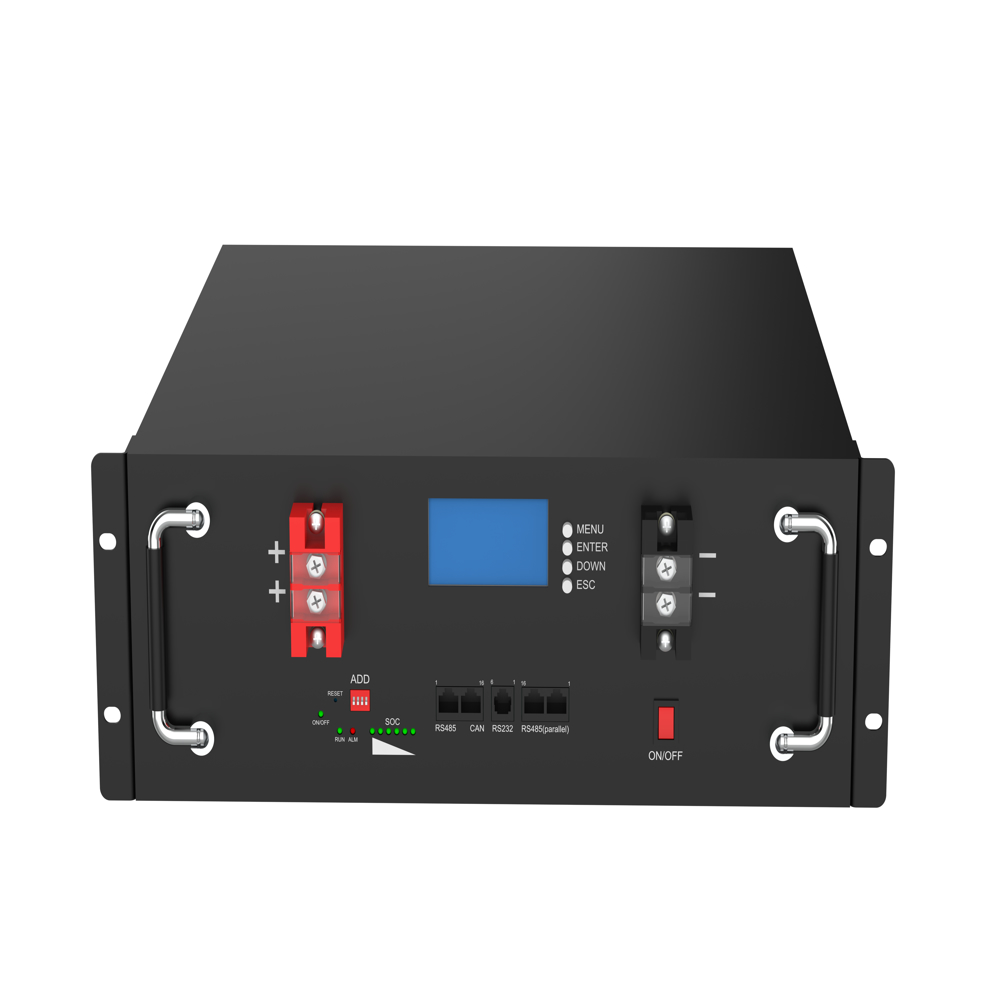

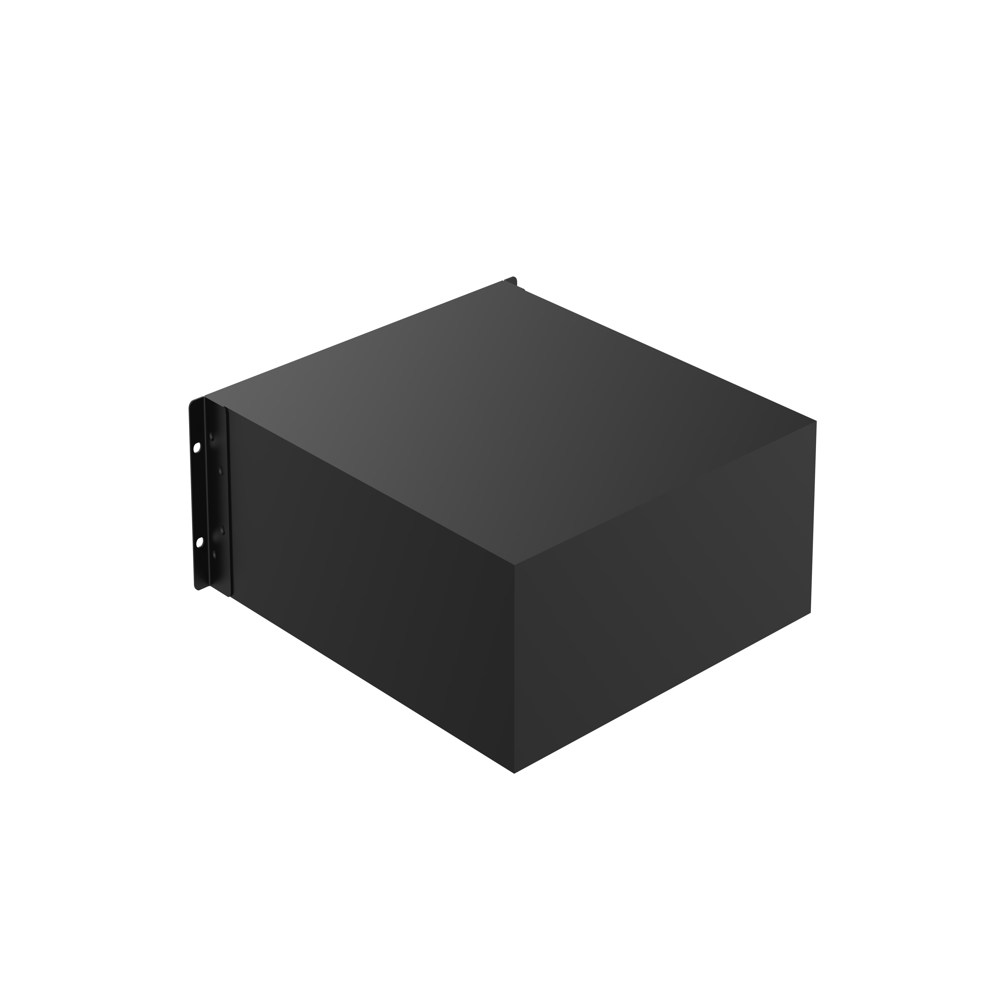

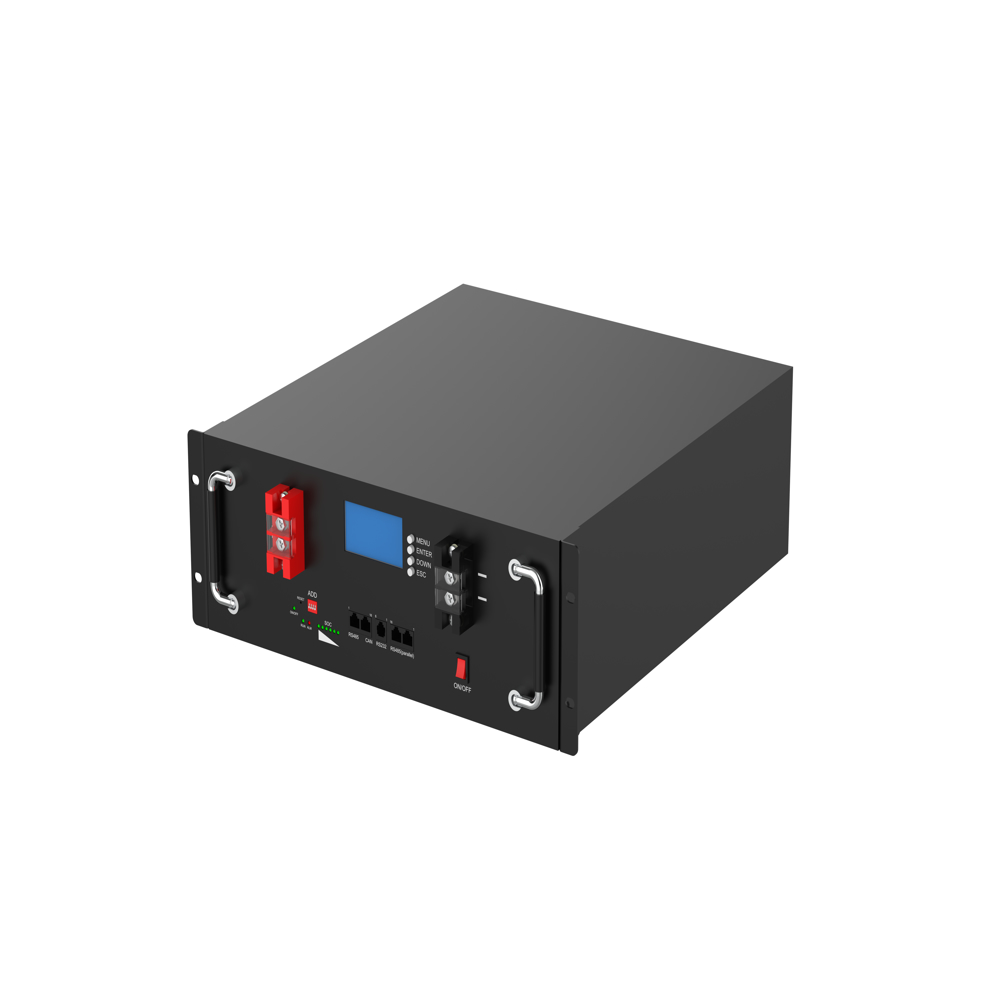

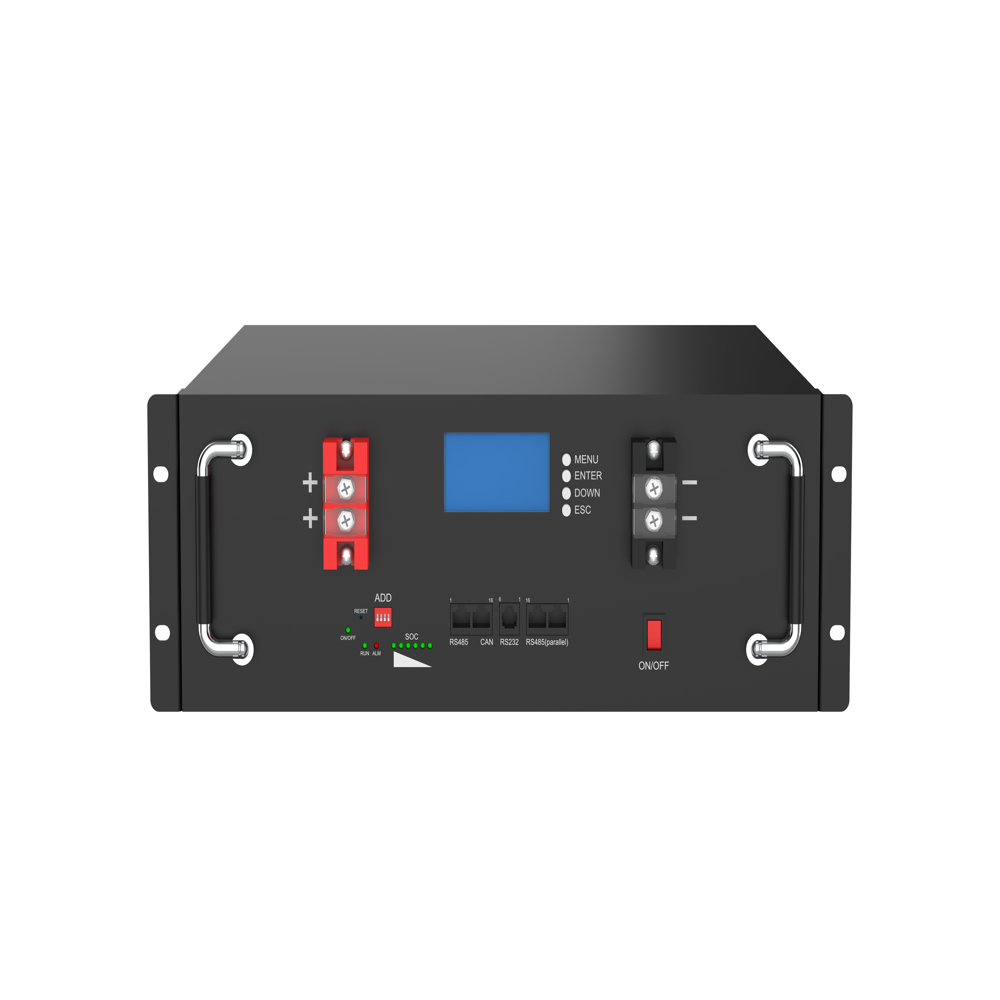

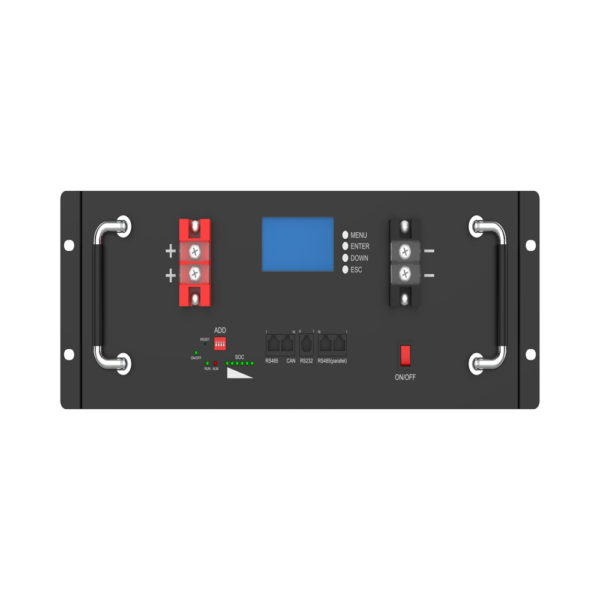

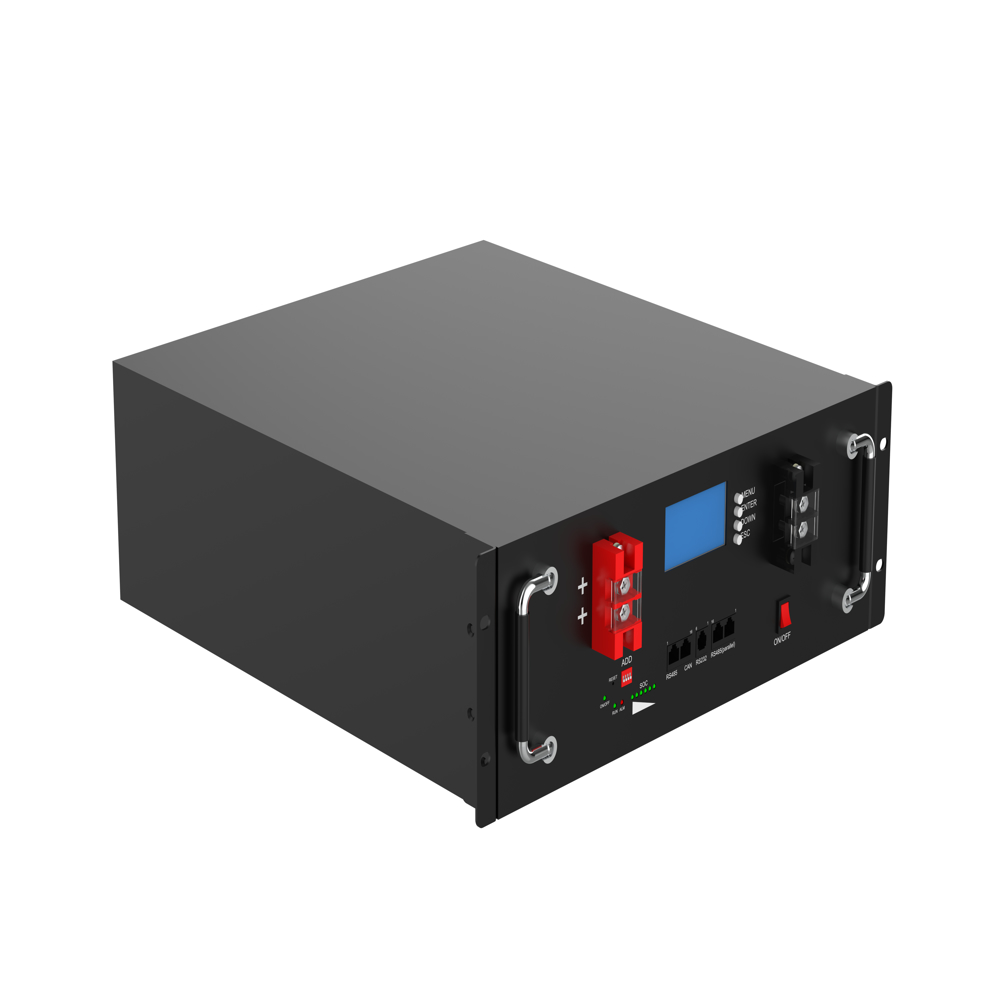

ESAUL 10KWh 51.2V 200Ah Server Rack Lithium Battery
- High energy density.
- Excellent performance in Charging and discharging at large current.
- Long working life, reducing maintenance costs.
- Multiple protection functions: overcharge protection (OCP), over-discharge protection (ODP), overcurrent protection (OCP), temperature protection, short circuit protection, reverse connection protection, ESD protection.
- Data transmission and parallel networking with RS485 and RS232 port.
- Accurate calculation of SOC and SOH.
Model No. | ERB-10KW |
---|---|
Rated Voltage (V) | 51.2 |
Rated Capacity(Ah) | 200 |
Rated Energy(Wh) | 10240 |
Voltage Range(V) | 44.8-56 |
Charge Voltage Range(V) | 55.2-56 |
Cut-off Voltage (V) | 44.8 |
Recommend Charge Current(A) | 50 |
Max Charge Current(A) | 100 |
Max Discharge Current(A) | 100 |
Dimension: LW*H(m) | 370*420*120 |
Weight(kg) | 70 |
Communication Port | RS485、CAN |
Display | LED+LCD |
Terminal | Plugin |
Compatible inverter | Growatt, Goodwe, Sol-Ark, SRNE DEYE |
Humidity (%) | 5-95% RH |
Charge Temperature Range(°C) | 0-45 |
Discharge Temperature Range(°C) | -20-60 |
Storage Temperature Range(°C) | -20-45 |
Cycle Life | >6000(0.5c@25C,80%DOD) |
Safety & Certification | CE,EMC,TUV(IEC62619),UL1973 |
Transportation | UN38.3 |
