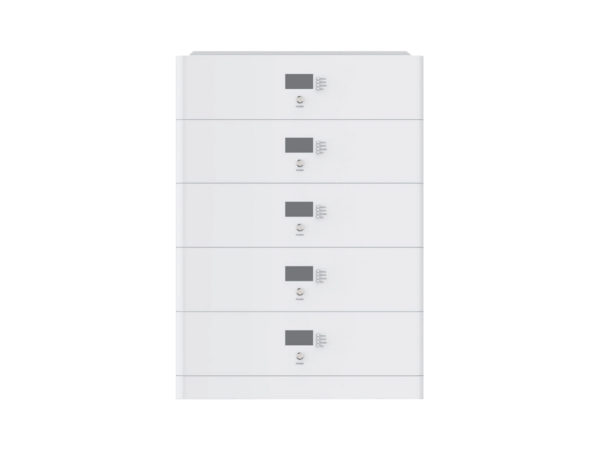

ESAUL 18KWh 51.2V Stackable Storage System with 5 Drawers
- Ultra-thin wall-mounted home storage design, beautiful atmosphere, perfectly integrated into the home environment.
- Built-in high stability BMS system with protection functions of overcharge, over-discharge, over current, high and low temperature, etc.
- Supports 16 groups of parallel operation at most, and can cope with long-term power consumption environment.
- Adaptable to mainstream brand inverters in the market, providing users with more choices.
| Module Number | 5 |
|---|---|
| Rated Voltage (V) | 51.2 |
| Rated Capacity(Ah) | 100 |
| Rated Energy(Wh) | 17920 |
| Voltage Range(V) | 44.8-56 |
| Standard Discharge Current(A) | 150 |
| EPS Rated power(W) | 5500 |
| AC output voltage (V) | 220-240 |
| PV Max.power(W) | 6000 |
| MPPT voltage range (V) | 160~450 |
| Output frequency (Hz) | 50Hz/60Hz |
| Display | 4.3 inch touch IPS LCD |
| Dimension:(LW*H) | 530*445*866 |
| Weight (kg) | 177 |
| IP | IP55 |
| Charge Temperature Range (*C) | 0~45 |
| Discharge Temperature Range (C) | -20-60 |
| Installation Method | Floor-mount |
| Cycle Life | >6000(0.5@20℃,80%DOD) |
| Safety & Certification | CE, FCC, ROHS |
| Transportation | UN38.3 |
